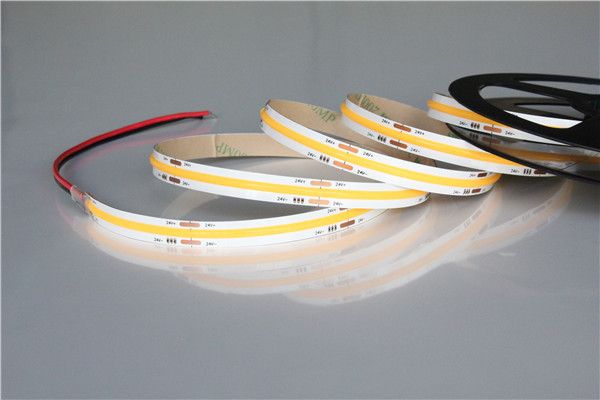

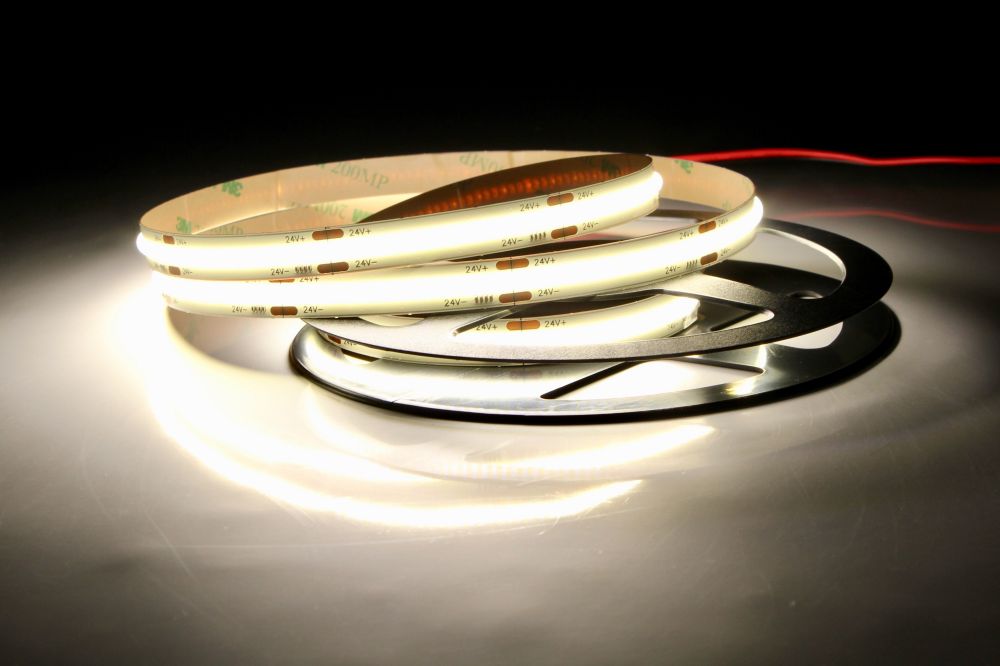

FCOB-480-12V 24V-COB-8mm or 10mm FPC LED Flexible Strip Light

No dot, Soft Light, Big Bean Angle 180°

  • adfa_01
  • adfa_03
  • adfa_05
  • adfa_07
  • adfa_09
  • adfa_11
IP Rate:
  • ggrtjfjh_02
  • ggrtjfjh_04
  • ggrtjfjh_06
  • ggrtjfjh_08
  • ggrtjfjh_10

Product Detail

Product Tags

Model No. VS-F480-12V/24V-COB-8mm/10mm

● Cut Length:(mm): 25mm for 12V; 50mm for 24V
● Number of LEDs / Meter: 480
● Power (W/M): 15W, 10W, 5W
● Input voltage (V) : 12V/24V DC
● CRI:>90
● Beam Angle: 180°
● FPC Width (mm): 8mm or 10mm
● IP Rate: IP20, IP65, IP66, IP68
● Warranty: 3 years
● Work Environment: -25°~ 45°
● Installation: 3M tape/ Mounting clips/ Aluminum profiles
FPC LED Flexible Strip Light (7)
FPC LED Flexible Strip Light (6)

Feature of COB LED Flexible Strip Light:

1. Flip-Chips
2. Beam angle 180°
3. High Density LED, No light spot
4. Extremely flexible
5. New tech against traditional strips.
6. Electrical stability, circuit design, optical design, heat dissipation design scientific and reasonable;
7.Adopt heat sink process technology to ensure that the LED has an industry-leading thermal lumen maintenance rate (95%).
8. High color rendering, uniform luminescence, no light spots, healthy and environmentally friendly.

FPC LED Flexible Strip Light (4)
FPC LED Flexible Strip Light (3)

More available items are below:



Emitting Color Kelvin Lumen (LM/Meter) CRI LED Quantity Widness of FPC Work voltage Power Cutting Size (mm)

320LEDs/Meter

 111Cool white 6000-6500K 1140LM(±10% ) >90 320chips/m, 1600chips/roll 8mm   or   10mm DC24V 12W/M.
60W/Roll
5Meter a roll
 DC24V:50mm
 2Natural white 4000-4500K
 3Warm white 2900-3100K

360LEDs/Meter

 111Cool white 6000-6500K 1140LM(±10% ) >90 360chips/m, 1800chips/roll 8mm   or   10mm DC12V 12W/M.
60W/Roll
5Meter a roll
 DC24V:50mm
 2Natural white 4000-4500K
 3Warm white 2900-3100K

480LEDs/Meter

 111Cool white 6000-6500K 520/1000/1500 LM(±10% ) >90 480chips/m, 2400chips/roll 8mm   or    10mm DC12V
DC24V
5W, 10W, 15W /M.
25W, 50W, 75W/Roll
5Meter a roll
DC12V:25mm DC24V:50mm
 2Natural white 4000-4500K
 3Warm white 2900-3100K
4Blue 455-465nm 12W/M.
60W/Roll
5Meter a roll
5Green 520-530nm
13Red 620-630nm
7Yellow 585-595nm
8Orange 595-605nm
9Tiffany Blue *
10Marrs Green *
11Plastic Pink *

512LEDs/Meter

111Cool white 6000-6500K 520/1000/1500 LM(±10% ) >90 512chips/m, 1600chips/roll 8mm   or    10mm DC24V 5W, 10W, 15W /M.
25W, 50W, 75W/Roll
5Meter a roll.
 DC24V:31.25mm
2Natural white 4000-4500K
3Warm white 2900-3100K

608LEDs/Meter

111
2CCT
3
2800-6000K 2230LM(±10%) >90 608chips/m, 3040chips/roll 10mm DC24V 20-24W/M.
100-120W/Roll
5Meter a roll
DC24V: 25mm

840LEDs/Meter

13
14RGB
15
>90 840chips/m, 4200chips/roll 10mm DC24V 15W/M.
75W/Roll
5Meter a roll
DC24V: 50mm

560LEDs/Meter

13
14RGBW
15
2
>90 560chips/m, 2800chips/roll 12mm DC24V 16W/M.
80W/Roll
5Meter a roll
DC24V: 50mm

Accessories:

dgadg23afcvx

We are COB LED Strips factory in China mainland. New items are coming all the time. Not only the items that have been shown here.
Just donot hesitate to contact with us now! We welcome you any questions about LEDs and its relative accessoires.
