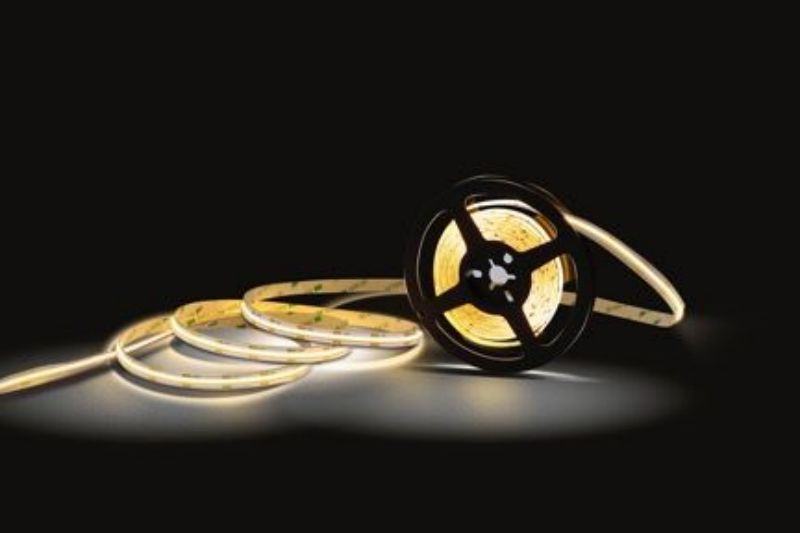

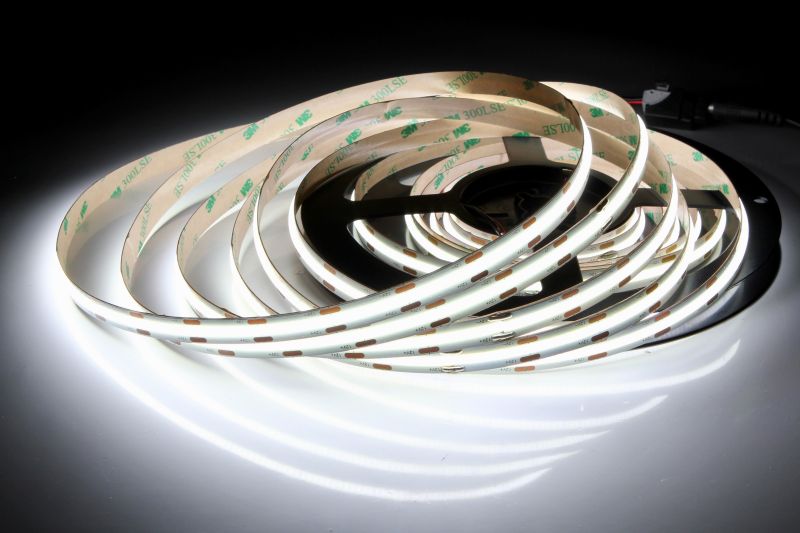

FCOB-320-24V-8mm or 10mm FPC LED Flexible Strip Light

COB LED Flexible Strip
No dot, Soft Light, Big Bean Angle 180°

IP Rate:

Send email to us

Product Detail

Product Tags

Model No. VS-F320-24V-COB-8mm/10mm

● Cut Length:(mm): 50mm for 24V

● Number of LEDs / Meter: 320

● Power (W/M): 10W for 8mm PFC; 12W for 10mm PFC

● Input voltage (V) : 24V DC

● CRI：>90

● Beam Angle: 180°

● FPC Width (mm): 8mm or 10mm

● IP Rate: IP20, IP65, IP67, IP68

● Warranty: 3 years

● Work Environment: -25°～ 45°

● Installation: 3M tape/ Mounting clips/ Aluminum profiles

What is COB LED Strips and Why COB LED Strip?

COB LED Strips is a new kind of LED Strips. The LED Chips are directly on FPCB, SO no need SMT Process.
The biggest advantage of COB LED Strips is no visiable dots and hot spots when you install them anywhere, including with slim size Aluminum profile.
Second, soft light with bigger angle than normal SMD LED Flexible strips light.

More available items are below:

Emitting Color	Kelvin	Lumen (LM/Meter)	CRI	LED Quantity	Widness of FPC	Work voltage	Power	Cutting Size (mm)
320LEDs/Meter
Cool white	6000-6500K	1140LM(±10% )	>90	320chips/m, 1600chips/roll	8mm or 10mm	DC24V	12W/M. 60W/Roll 5Meter a roll	DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
360LEDs/Meter
Cool white	6000-6500K	1140LM(±10% )	>90	360chips/m, 1800chips/roll	8mm or 10mm	DC12V	12W/M. 60W/Roll 5Meter a roll	DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
480LEDs/Meter
Cool white	6000-6500K	520/1000/1500 LM(±10% )	>90	480chips/m, 2400chips/roll	8mm or 10mm	DC12V DC24V	5W, 10W, 15W /M. 25W, 50W, 75W/Roll 5Meter a roll	DC12V:25mm DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
Blue	455-465nm						12W/M. 60W/Roll 5Meter a roll
Green	520-530nm
Red	620-630nm
Yellow	585-595nm
Orange	595-605nm
Tiffany Blue	*
Marrs Green	*
Plastic Pink	*
512LEDs/Meter
Cool white	6000-6500K	520/1000/1500 LM(±10% )	>90	512chips/m, 1600chips/roll	8mm or 10mm	DC24V	5W, 10W, 15W /M. 25W, 50W, 75W/Roll 5Meter a roll.	DC24V:31.25mm
Natural white	4000-4500K
Warm white	2900-3100K
608LEDs/Meter
CCT	2800-6000K	2230LM(±10%)	>90	608chips/m, 3040chips/roll	10mm	DC24V	20-24W/M. 100-120W/Roll 5Meter a roll	DC24V: 25mm
840LEDs/Meter
RGB			>90	840chips/m, 4200chips/roll	10mm	DC24V	15W/M. 75W/Roll 5Meter a roll	DC24V: 50mm
560LEDs/Meter
RGBW			>90	560chips/m, 2800chips/roll	12mm	DC24V	16W/M. 80W/Roll 5Meter a roll	DC24V: 50mm

Accessories:

We are COB LED Strips factory in China mainland. New items are coming all the time. Not only the items that have been shown here.
Just donot hesitate to contact with us now! We welcome you any questions about LEDs and its relative accessoires.
