2835-60-12V 24V-8mm S Shape

Better Cost-performance ratio

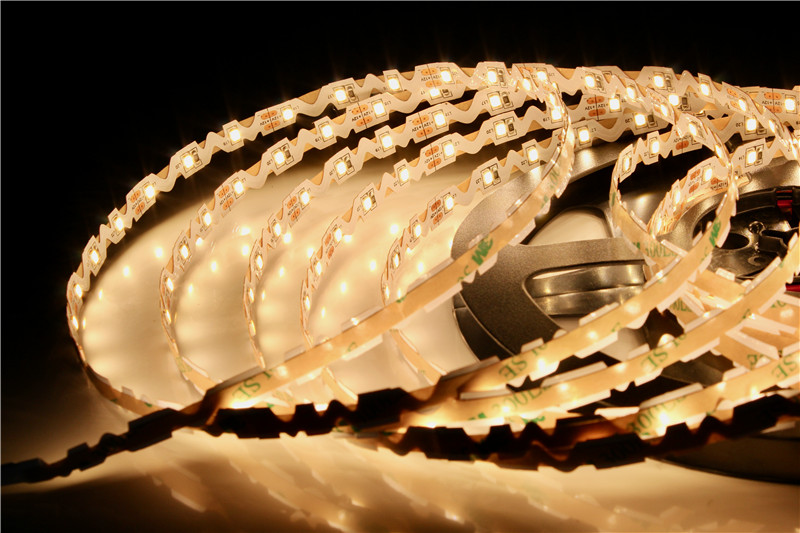

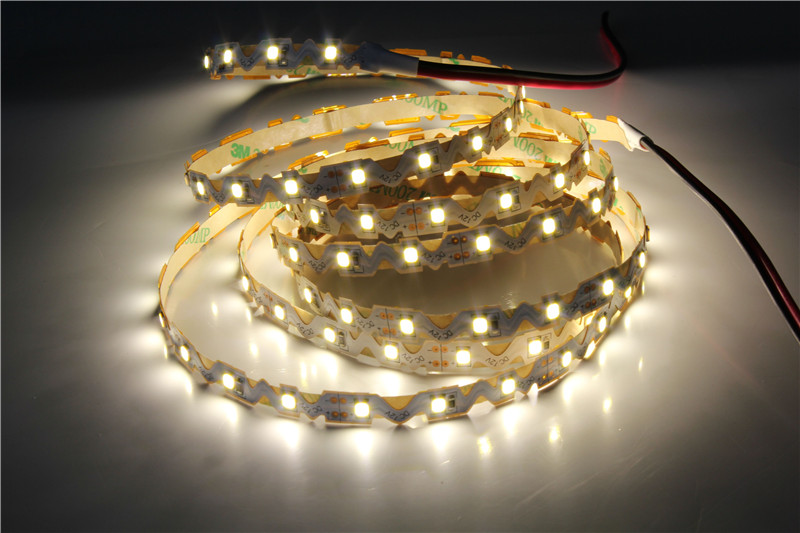

“S” shape led strips that can achieve any shape to be used with back-channel letter.

IP Rate:

Send email to us

Product Detail

Product Tags

Model No. VS-F300-12V/24V-2835-8mm-"S" Shape

● Cut Length:(mm): 50mm for 12V; 100mm for 24V

● Number of LEDs / Meter: 60

● Power (W/M): 12W

● Input voltage (V) : 12V/24V DC

● CRI：>90

● Beam Angle: 120°

● FPC Width (mm): 8mm

● IP Rate: IP20, IP65, IP67, IP68

● Warranty: 3 years

● Work Environment: -25°～ 45°

● Installation: 3M tape/ Mounting clips/ Aluminum profiles

What is 2835 LED Strips and Why 2835 LED Strip?

2835 SMD LED Strips, just from its name, 2835 SMD LED, We know its size: 2.8mm X 3.5mm. It is the most widely use LEDs nowdays.
Its name look like 3528 LEDs, but 2835 LEDs use newer technology and are typically much more efficient. This means that for equivalent power, they can be much, much brighter.
It appears more late than 5050 LEDs and 3528 LEDs, but more widely taken now days. Because of, lower price and super brightness.

More available items are below:

Emitting Color	Kelvin	CRI	LED Quantity	Widness of FPC	Work voltage	Power	Cutting Size (mm)
60LEDs/Meter
Cool white	6000-6500K	>90	60LEDs/m, 300LEDs/roll	5mm 8mm 10mm	DC12V. DC24V	12W/M. 60W/Roll 5Meter a roll	DC12V:50mm. DC24V:100mm
Natural white	4000-4500K
Warm white	2900-3100K
84LEDs/Meter
Cool white	6000-6500K	>90	84LEDs/m, 420LEDs/roll	10mm	DC12V. DC24V	16.8W/M. 84W/Roll 5Meter a roll	DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
120LEDs/Meter
Cool white	6000-6500K	>90	120LEDs/m, 600LEDs/roll	5mm 8mm 10mm	DC12V DC24V	24W/M. 120W/Roll 5Meter a roll	DC12V:25mm DC24V:50mm
Natural white	4000-4500K
Warm white	2900-3100K
Blue	455-465nm
Green	520-530nm
Red	620-630nm
Yellow	585-595nm
Orange	595-605nm
240LEDs/Meter
Cool white	6000-6500K	>90	240LEDs/m, 1200LEDs/roll	10mm	DC24V	24 /M. 120W/Roll 5Meter a roll.	DC24V: 25mm
Natural white	4000-4500K
Warm white	2900-3100K
144LEDs/Meter
Cool white	6000-6500K	>90	144LEDs/m, 720LEDs/roll	15mm	DC24V	28.8 /M. 144W/Roll 5Meter a roll.	DC24V: 83.33mm
Natural white	4000-4500K
Warm white	2900-3100K
120LEDs/Meter
CCT	2800-6000K	>90	120LEDs/m, 600LEDs/roll	10mm	DC12V DC24V	24W/M. 120W/Roll 5Meter a roll	DC12V:50mm. DC24V:100mm
